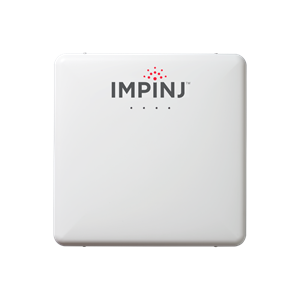

Impinj xArray Gateway

Product Overview
Impinj xArray Gateway - Always-On, Wide-Area Monitoring, Locationing

Region *
Power Supply *
Warranty *

$3,299.00

Qty:

Overview
Specifications
Attachments

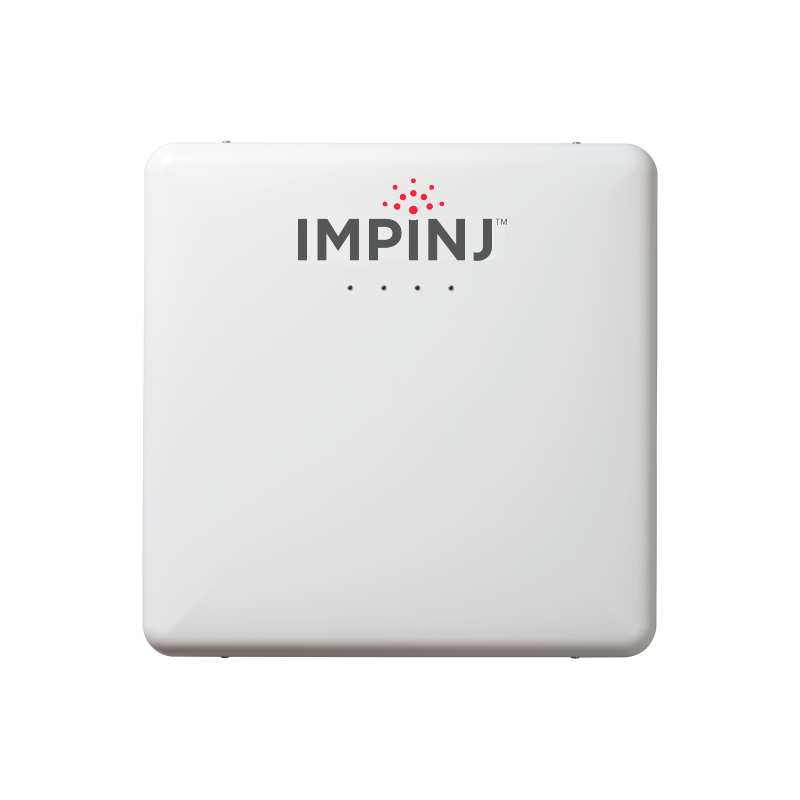

Impinj xArray Gateway

Improve operational visibility throughout your facility, or across your global supply chain, with the Impinj xArray gateway. The xArray is a fixed infrastructure RAIN RFID gateway that provides always-on, wide-area monitoring for real-time identification, location, and direction of RAIN RFID tagged items. Item Intelligence information — like identity and location of items — informs third-party applications and enables business transformation and improved time-to-value for RAIN RFID deployments.

Impinj’s ItemSense software aggregates and transforms the torrents of raw RAIN RFID data from xArrays into real-time, business-driven Item Intelligence. Leverage ItemSense to centralize and automate xArray infrastructure management and health monitoring while aggregating data streams that offer asset or item identification, location, and zone transition information to inform and improve business processes.

Benefits:

A single xArray can monitor up to 1,500 sq. ft. (139m2) when Monza R6 based tags are used, extend coverage with multiple xArrays

Intelligent item locating with 5 ft. (1.5m) or better spatial resolution of (x,y) location.

Patented Autopilot functionality automatically optimizes the xArray for its environment, ensuring peak performance at all times.

Unique functionality with defined operating modes: Wide-area monitoring for tracking overall tag inventory; Locationing for obtaining tag x,y location; and Tag Direction for tracking tags moving through sectors.

Low profile design fits into standard ceiling tile grid and blends into décor.

Exceptional performance provided by 2-D array with 52 dual-polarized antenna beams.

Easy to use and maintain with IEEE 803.2af PoE, tilt sensor to detect when out of alignment.

Easy programming using Octane SDK, LLRP and Impinj extensions.

Products specifications

Use Case	Portals and Entrances, Large Area Monitoring, Movement Detection, Locating Items
Coverage Area	1,500 sq. ft. (139m2) with Monza R6 based tags*, coverage area may be less with other RFID tags.
Number of Beams	52 Dual- Polarized Beams
Operating Modes	Inventory (tag monitoring) Tag Direction (track tags as they move thru sectors) Location (tag x, y location)
Air Interface Protocol	RAIN RFID / UHF Gen 2 ( ISO 18000-63 ) / GS1
Receive Sensitivity ( Maximum )	-84 dBm Monostatic
Application Interface	EPCglobal Low Level Reader Protocol (LLRP) v1.0.1
Network Connectivity	10/100BASE-T Ethernet
IP Address Configuration	DHC P, Static, or Link Local Addressing (LLA) with Multicast DNS (mDNS); Initial network connection fails over to static address.
Time Synchronization	Network Time Protocol (NTP)
Management Interfaces	Interfaces Impinj Web Management UI Impinj RShell Management Console using serial management console port, telnet or SSH SNMPv2 MIBII EPCglobal Reader Management v1.0.1 Syslog
Environmental Sealing	IEC IP52
Operating Temperature	-4°F to 122°F (-20°C to 50°C)
Humidity Range	5% to 95% non-condensing
Dimensions (H x W x D)	18 x 18 x 3 in (46.7 x 46.7 x 7.5 cm)
Weight	17.8 lbs (8.0 kg)
RoHS Compliant	Yes
Frequency Bands	902 to 928 MHz - FCC 865 to 868 MHz - ETSI
Software	RFID Revolution Express RFID Starter Tool Multi-Reader ItemTest Speedway SDK, ETK and LTK library support
RF Certifications	US, Canada, and other regions following US FCC Part 15 regulations (902-928 MHz) or Geographies Europe and other regions following ETSI EN 302 208 v1.2.1 without LBT regulations (865-868 MHz) More regions availables, see www.impinj.com/supported
Part #s	IPJ-REV-R680-USA1M1, IPJ-REV-R680-EU11M1, IPJ-REV-R680-GX11M1, IPJ-REV-R680-GX21M1, IPJ-REV-R680-GX31M1, IPJ-REV-R680-JP21M1

Product Files

Product Description

Impinj xArray Gateway

Benefits:

A single xArray can monitor up to 1,500 sq. ft. (139m2) when Monza R6 based tags are used, extend coverage with multiple xArrays

Intelligent item locating with 5 ft. (1.5m) or better spatial resolution of (x,y) location.

Patented Autopilot functionality automatically optimizes the xArray for its environment, ensuring peak performance at all times.

Low profile design fits into standard ceiling tile grid and blends into décor.

Exceptional performance provided by 2-D array with 52 dual-polarized antenna beams.

Easy to use and maintain with IEEE 803.2af PoE, tilt sensor to detect when out of alignment.

Easy programming using Octane SDK, LLRP and Impinj extensions.

Additional information

Manufacturer: Impinj

Products specifications

Use Case	Portals and Entrances, Large Area Monitoring, Movement Detection, Locating Items
Coverage Area	1,500 sq. ft. (139m2) with Monza R6 based tags*, coverage area may be less with other RFID tags.
Number of Beams	52 Dual- Polarized Beams
Operating Modes	Inventory (tag monitoring) Tag Direction (track tags as they move thru sectors) Location (tag x, y location)
Air Interface Protocol	RAIN RFID / UHF Gen 2 ( ISO 18000-63 ) / GS1
Receive Sensitivity ( Maximum )	-84 dBm Monostatic
Application Interface	EPCglobal Low Level Reader Protocol (LLRP) v1.0.1
Network Connectivity	10/100BASE-T Ethernet
IP Address Configuration	DHC P, Static, or Link Local Addressing (LLA) with Multicast DNS (mDNS); Initial network connection fails over to static address.
Time Synchronization	Network Time Protocol (NTP)
Management Interfaces	Interfaces Impinj Web Management UI Impinj RShell Management Console using serial management console port, telnet or SSH SNMPv2 MIBII EPCglobal Reader Management v1.0.1 Syslog
Environmental Sealing	IEC IP52
Operating Temperature	-4°F to 122°F (-20°C to 50°C)
Humidity Range	5% to 95% non-condensing
Dimensions (H x W x D)	18 x 18 x 3 in (46.7 x 46.7 x 7.5 cm)
Weight	17.8 lbs (8.0 kg)
RoHS Compliant	Yes
Frequency Bands	902 to 928 MHz - FCC 865 to 868 MHz - ETSI
Software	RFID Revolution Express RFID Starter Tool Multi-Reader ItemTest Speedway SDK, ETK and LTK library support
RF Certifications	US, Canada, and other regions following US FCC Part 15 regulations (902-928 MHz) or Geographies Europe and other regions following ETSI EN 302 208 v1.2.1 without LBT regulations (865-868 MHz) More regions availables, see www.impinj.com/supported
Part #s	IPJ-REV-R680-USA1M1, IPJ-REV-R680-EU11M1, IPJ-REV-R680-GX11M1, IPJ-REV-R680-GX21M1, IPJ-REV-R680-GX31M1, IPJ-REV-R680-JP21M1
